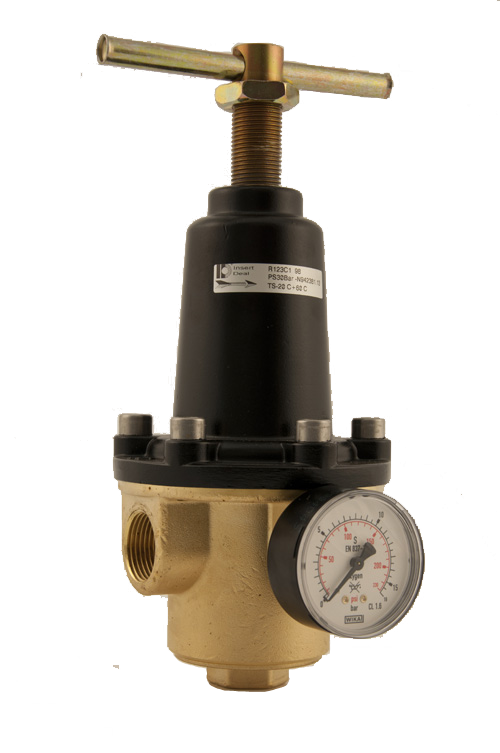

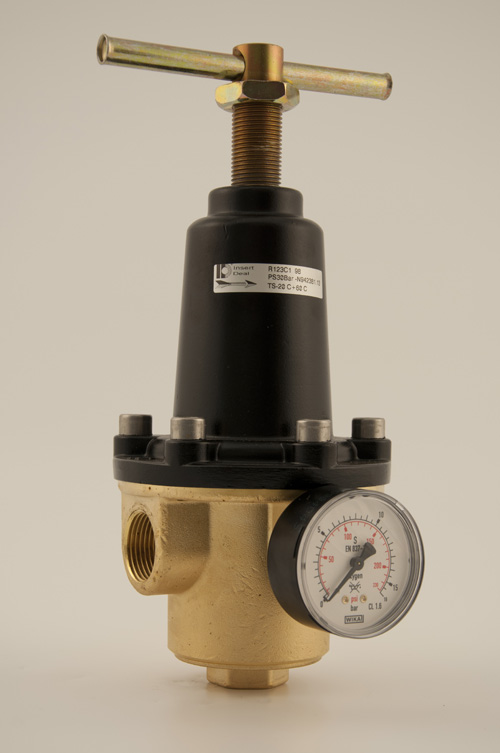

Van điều áp R123

FEATURES

Pressure regulator for inlet pressure up to
50 bar (725 psi) in the standard version.
Connection ports.
R123 1”-F
R123/34 3/4”-F
Outlet pressure, up to 15 bar (217 psi), is
controlled by a rubber diaphragm; greater
outlet pressures are controlled by a piston.
Balanced main valve.
Available the ATEX 2014/34/EU version.
Brand CE Ex
II2GcIICTX
            CE Ex
II2DcIIICTX.
For use in potentially explosive
atmospheres zones: 1, 21, 2, 22 (not
applicable in mines and zone 0).
Available the EAC-EX TP TC 012/2011 versions
for the Russian market.
The product complies with the directive
2014/68/EU PED.
Gauge for outlet pressure
(accuracy class 1.6)
