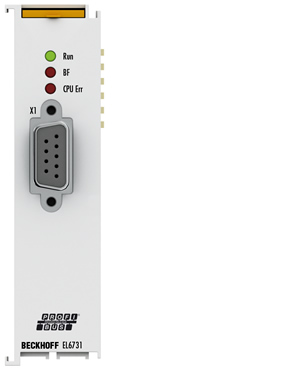

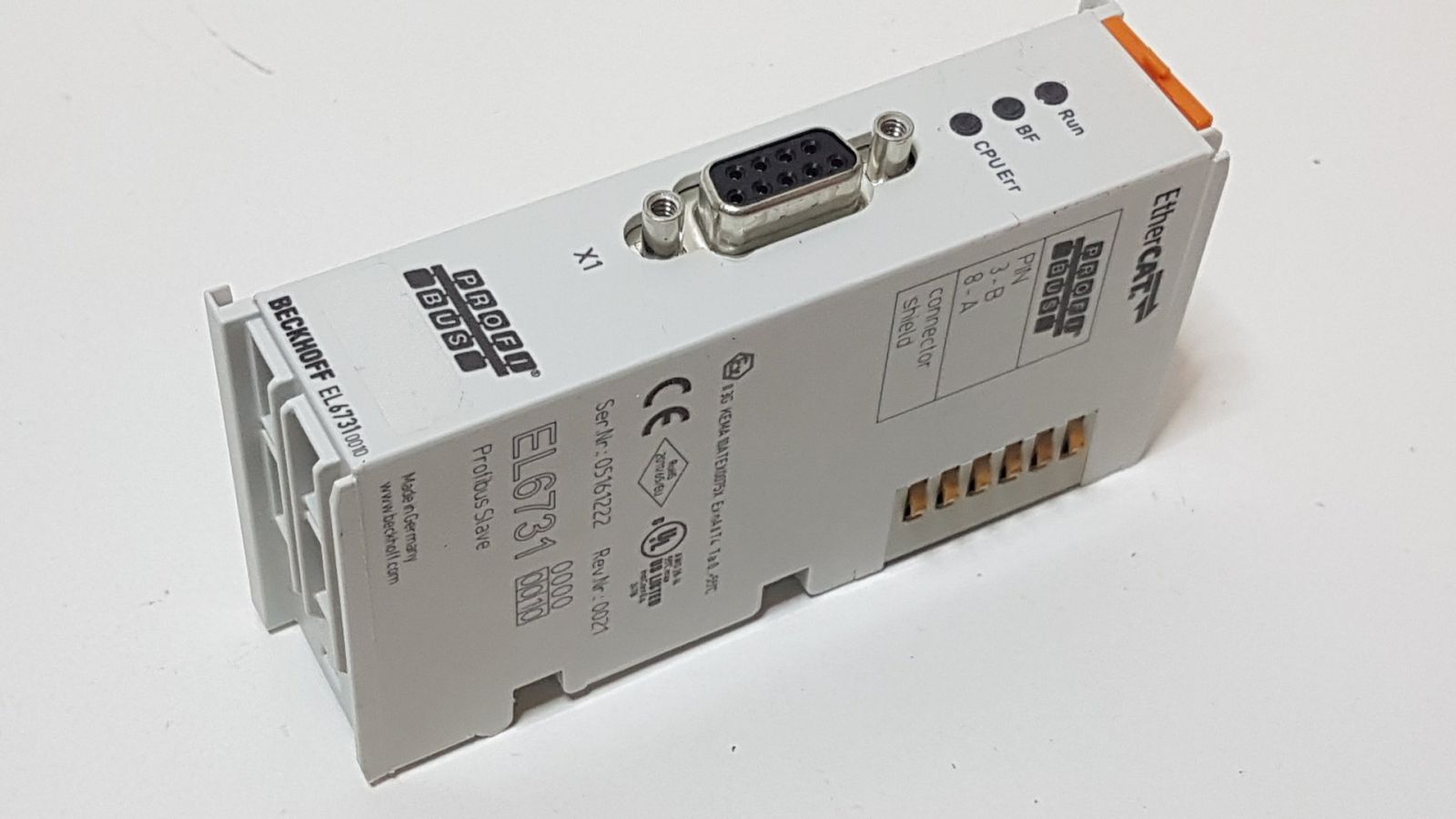

Module profibus EL6731 Beckhoff
-
- Thông Tin Sản Phẩm
- Đánh Giá
EL6731 | PROFIBUS master/slave terminal
The PROFIBUS master terminal EL6731 supports the PROFIBUS protocol with all its features. Within an EtherCAT Terminal network, it enables the integration of any PROFIBUS devices. Thanks to the PROFIBUS chip developed in-house, the terminal is equipped with the latest version of the PROFIBUS technology – including high-precision isochronous mode for axis control and expanded diagnostic options. These masters are the only ones that support different poll rates for the slaves. Features:
- Cycle times from 200 µs are possible.
- PROFIBUS DP, PROFIBUS DP-V1, PROFIBUS DP-V2
- master and slave up to 12 Mbit/s
- powerful parameter and diagnostics interfaces
- The error management for each bus user is freely configurable.
- It is possible to read the bus configuration and automatically assign the “GSD” files.
Like the FC3101 PROFIBUS PCI card, the EL6731 can be used for connection to PROFIBUS networks. The terminal, however, enables a more space-saving implementation since no PCI slots are required in the Industrial PC.
| Technical data | EL6731 | EL6731-0010 |
|---|---|---|
| Technology | PROFIBUS master terminal | PROFIBUS slave terminal |
| Cycle time | differing DP cycle times per slave are possible using the CDL concept | |
| Fieldbus | PROFIBUS DP (standard), PROFIBUS DP-V1 (Cl. 1+2: acyclic services, alarms), DP-V2, PROFIBUS MC (equidistant) | |
| Number of fieldbus channels | 1 | |
| Data transfer rates | 9.6 kbaud…12 Mbaud | |
| Interfaces | 1 x D-sub socket, 9-pin, galvanically decoupled | |
| Bus device | max. 125 slaves with up to 244 bytes input, output, parameter, configuration or diagnostic data per slave | |
| Hardware diagnosis | status LEDs | |
| Distributed clocks | yes | – |
| Bit width in the process image | total max.: 1.4 kbyte input and 1.4 kbyte output data | |
| Current consumption power contacts | – | |
| Current consumption E-bus | typ. 350 mA | |
| Weight | approx. 70 g | |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C | |
| Relative humidity | 95 %, no condensation | |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 | |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 | |
| Protect. class/installation pos. | IP 20/variable | |
| Approvals | CE, UL, Ex | |
